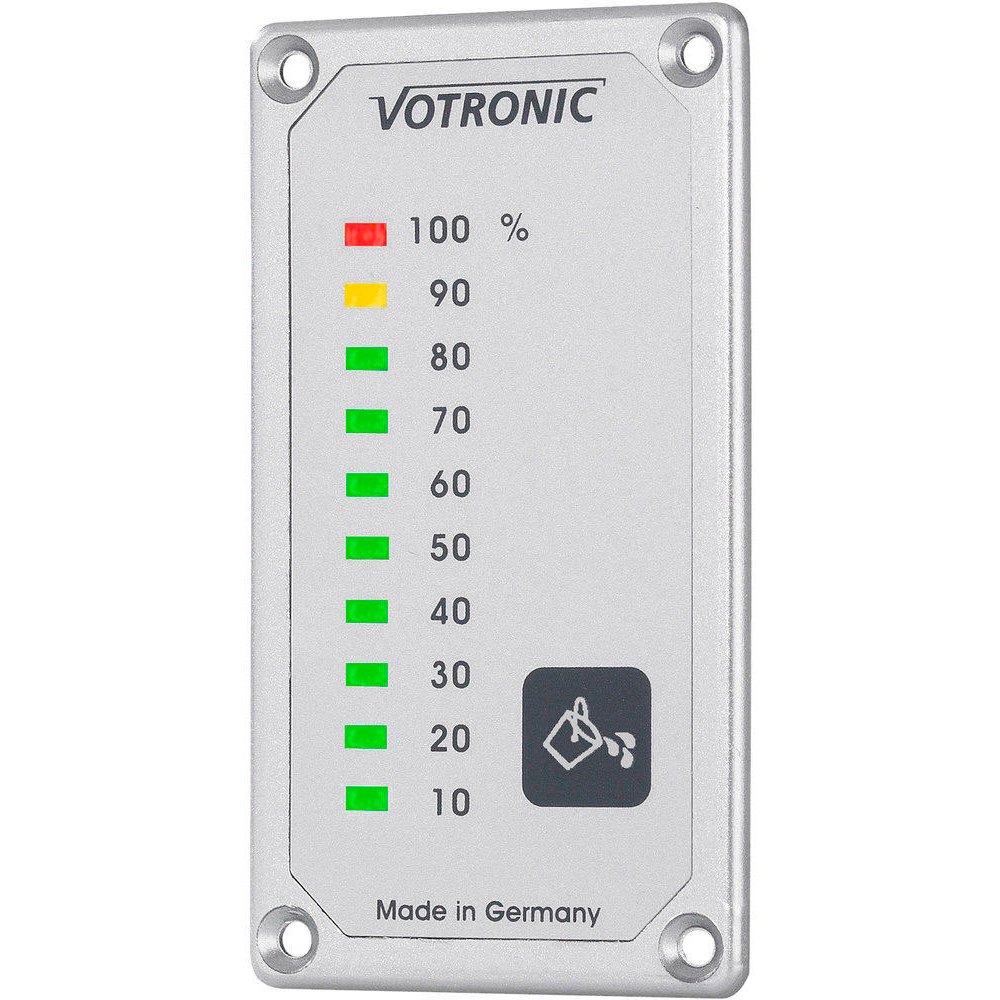

The fill levels of the tanks are displayed as clearly arranged light bars with 10 LEDs each in three colors, which allows the tank fill levels to be recorded precisely at a glance. The displays work continuously, as intermediate levels are displayed with variable brightness and therefore trends can be recognized immediately. When refueling and emptying the tanks, the constantly rising or falling display provides the user with a direct image of the current fill level and thus enables complete control of the process. The continuous operation of the display also contributes to this. The indicator can be switched on and off at the touch of a button and switches off again automatically after approx. 10 minutes.
The display units are designed as a panel version to match the VOTRONIC modular system and fit in perfectly with other VOTRONIC display units (uniform height 85 mm). Of course, it is also possible to retrofit a single display in the vehicle. Small front panel dimensions and the particularly low installation depth of just 18 mm allow installation in almost any location. This means that the storage space behind can still be used.
The devices are protected against reverse polarity and overload and are easy to connect via screw terminals on the rear of the device. Installation and operating instructions as well as a drilling template for the furniture cut-out are included in the scope of delivery. Like the encoders, the displays are also suitable for 12V and 24V operation.
The marine version is additionally equipped with moisture-protected electronics
Details
- Operating voltage: 12 and 24 V
- Current consumption: 1 - 30 mA
- Dimensions (W x H x D): 47 x 85 x 20 mm
- Installation dimensions (W x H x D): 29 x 63 x 18 mm
- Test mark: CE, E-test (EMC/vehicle directive)
- Mounting screws
- Operating instructions
- Drilling template
