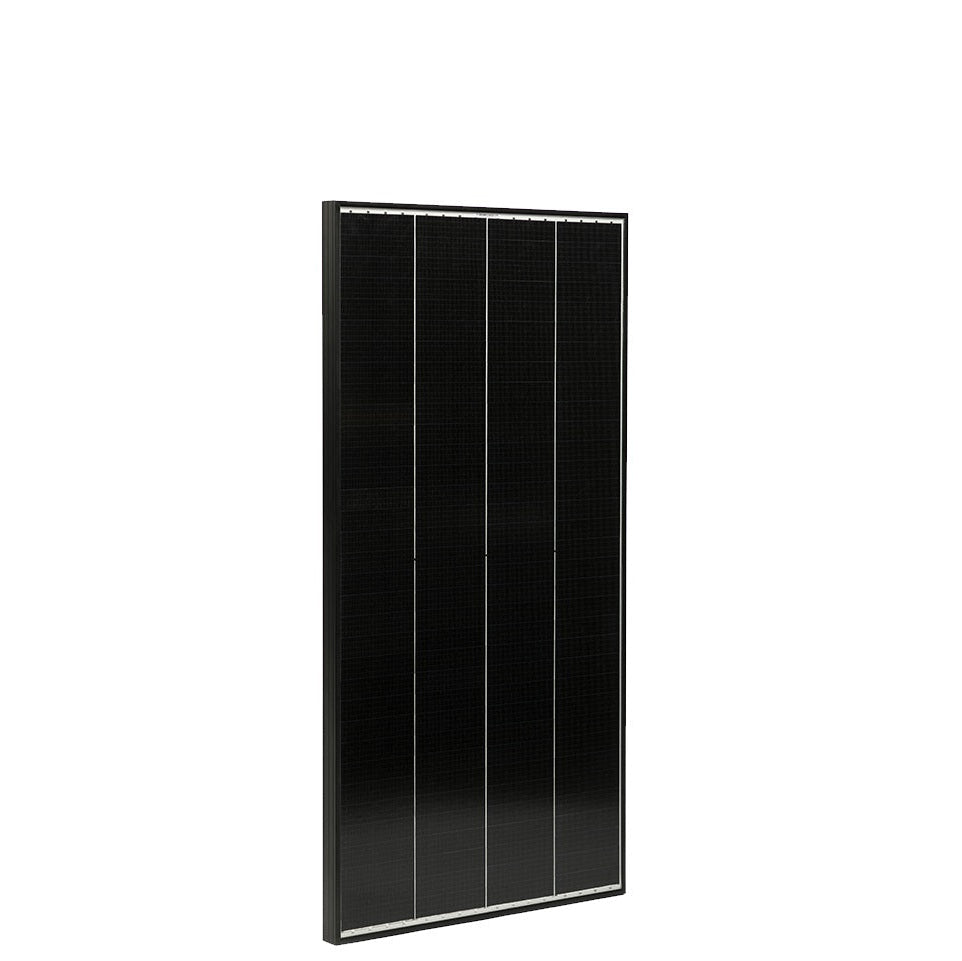

Solar module 170 watt monocrystalline

incl. VAT excl. Shipping costs

CH
In Winterthur an Lager
103 Stück
OK
Artikel-Nr. A201896
Netto Gewicht 8.557 kg
Lieferung in 1-3 Werktagen
Twint Mastercard Visa Amex PF Pay Rechnung Vorauskasse PayPal
Technical data
Rated power 170W
Cell type Monocrystalline
Cell efficiency 21,4%
Maximum power current (Imp) 8.32A
Maximum power voltage (Vmp) 20.41V
Open circuit voltage (Voc) 24.26V
Short-circuit current (ISC) 8.75A
Maximum system voltage 1000V
Output tolerance +3%
Cable length 500mm / 2.5mm2

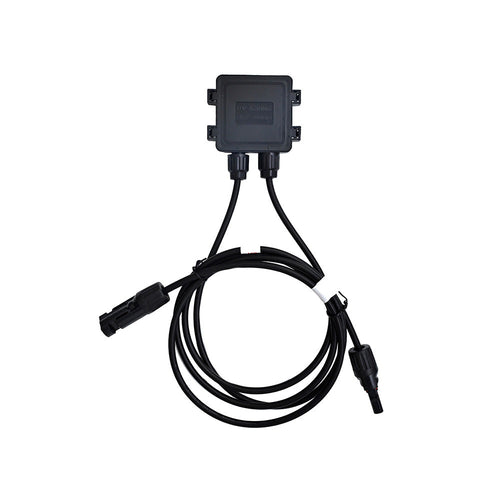

Connector type MC4 / MC4 compatible
Module structure Aluminum frame / glass / EVA / backsheet (white)
Junction box rating IP67 RATING
Number of diodes One
Operating temperature -40℃~+80℃
Packaging
Module dimensions 1230*670*30mm
Module weight 11.83kg
Package Single package

Shipping costs:

Normal package: 9.
PRIO Normal package: 15.
Bulky goods package: 29.
Prio bulky goods package: 39.00
3x or more bulky goods parcels: 49.00
Prio 3x or more bulky goods parcels: 69.00
Piece goods: 99.
Collection: Free of charge

We deliver throughout Switzerland and to Liechtenstein.

The costs are displayed in the checkout BEFORE payment.

Bulky goods packages Parts with one side longer than 1 meter, e.g. Armaflex, solar, felt, aluminum profiles...

General cargo: These are some batteries or large items that have to be shipped by freight forwarder. (Air conditioners...)

PRIO (selectable in the checkout at an additional cost) means that we pack these parcels first and hand over orders to the post office by 16:00 on the same day. These parcels are handed over to the post office with PRIO stickers and should arrive the next day.

A pick-up in Winterthur can be selected at check-out. Please leave your email so that our system can let you know when it is ready for collection. (Usually happens within 24 hours)
