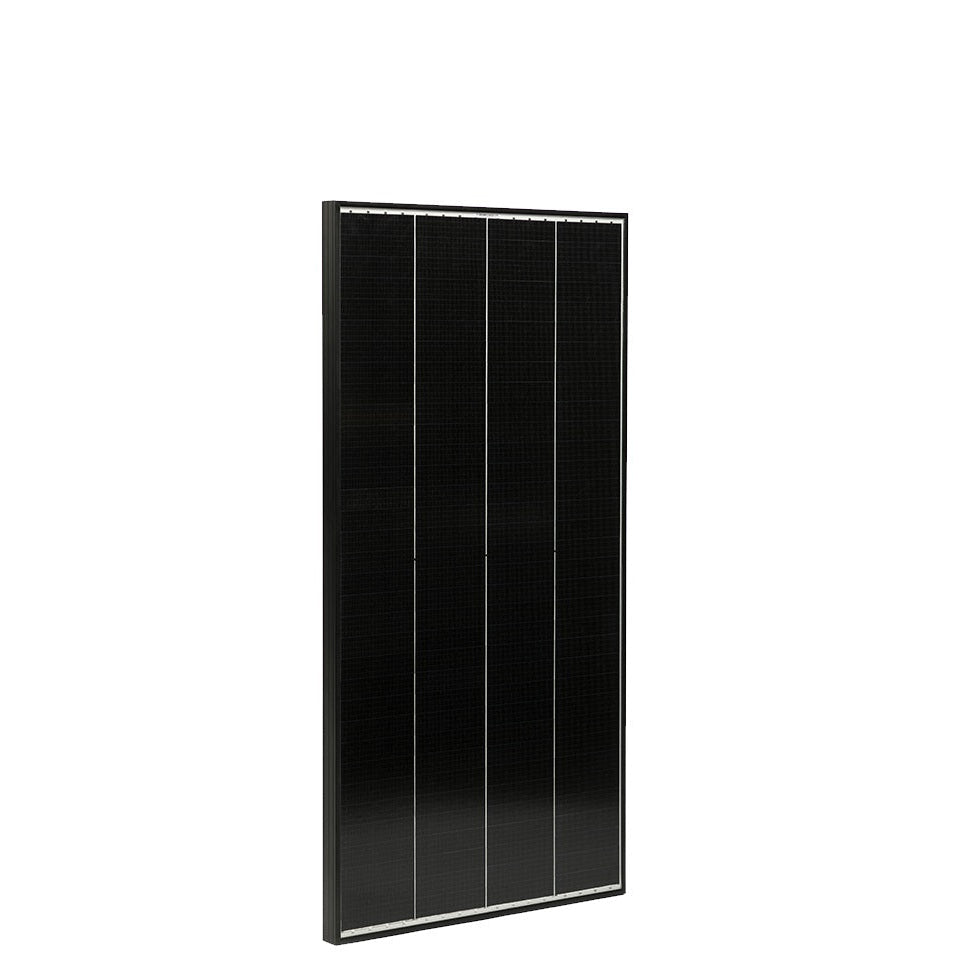

Solar module 110 watt monocrystalline

149.00 CHF

incl. VAT excl. Shipping costs

: The monocrystalline solar module with a rated output of 110 WP is ideal for off-grid operation due to its low rated voltage of 19 V.

The solar module consists of various laminated layers.

Starting from the back, there is a white plastic backing, a double-sided adhesive film, the actual doped wafers,

another double-sided adhesive film and then a specially hardened glass.

These various individual components are pressed together under pressure and temperature.

As a result, the back and front sides are very well protected against moisture penetration.

This not only results in a much more stable solar module, but also provides a very good seal against the penetration of moisture into the laminate.

The junction box contains bypass diodes which prevent the output of all solar modules connected in series from being reduced in the event of partial shading.

Furthermore, the junction box is flush with the frame and has a PG screw connection to prevent moisture from penetrating.

Technical data
Power: 110W
Voltage: 23.81V
Current: 4.62A
Open-circuit voltage: 28.3V
Short-circuit current: 4.9A
Max. system voltage: 100V DC System voltage: 100V DC
Cell efficiency: 15.43%
Dimensions: 1080x510x30mm
Weight: 7.6 kg

All advantages at a glance:
-More stability thanks to double-walled aluminium frame with a height of 35 mm Silver anodized.
No loss of performance due to lower Hintze development thanks to the light-colored base plate.
-Easy and universal installation with spoiler and Dekasyl MS-5 mounting adhesive.
-Especially high protection against hail and high wind speeds thanks to specially hardened, translucent glass.
-Easy replacement of the solar cell thanks to screw connection to the spoiler.
-Easy replacement of the diodes thanks to access to the bypass diode from the underside.
