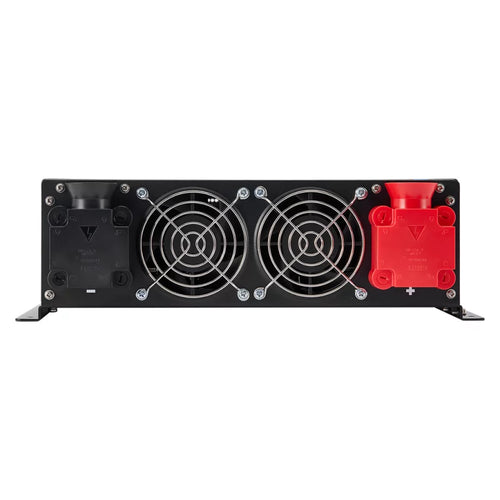

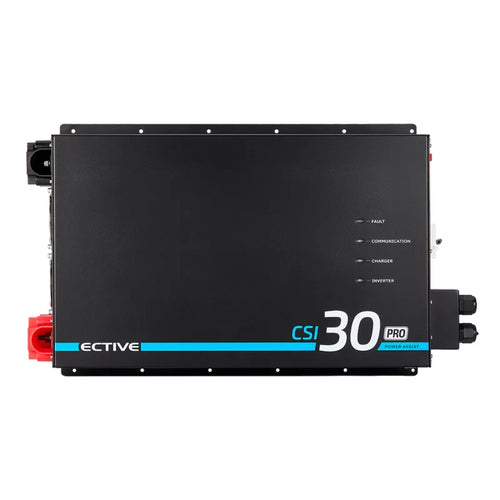

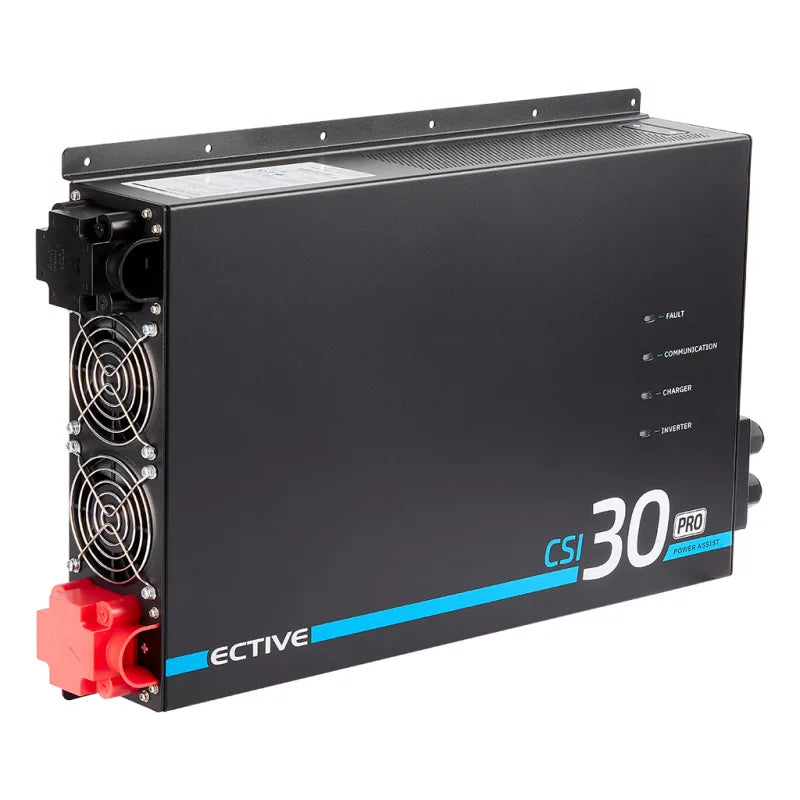

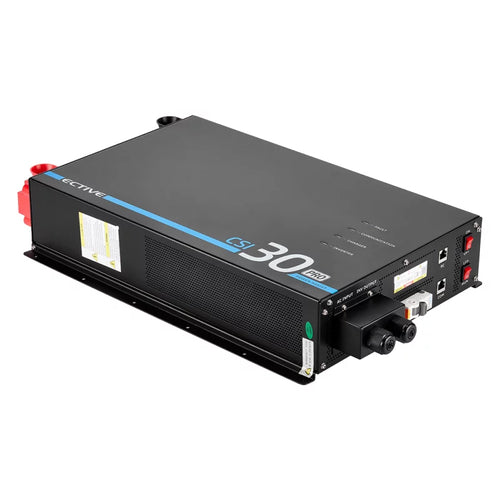

ECTIVE CSI 30 PA-RCD PRO 3000W/12V sine wave inverter with mains priority circuit and 125 A / 1500 W charger

Description

The CSI PA PRO is afully-fledged energy centerthat combines inverter, power assist, charger, mains transfer and communication interfaces in a single device. Theshore power limitation protects the fuse on the campsite, while Power-Assist automatically supplements battery power - so you can even operate your induction hob on pitches in Italy without tripping the fuse. The integrated125 A / 1500 W charger charges AGM, gel, wet or lithium batteries extremely quickly and efficiently. The device checks the battery status at short intervals and automatically keeps the battery full with shore powerautomatically full - perfect for always starting with 100% capacity.

You can control the shore power limit, charging current and operating modes directly in the connECTIVE app via Bluetooth. Alternatively, all devices can be integrated into existing central energy management systems via CI bus or CAN bus, without an additional display in the interior.

Power Assist & mains function

• Individually adjustable shore power limitation (1-16 A) - protects the fuse at the pitch
• Power Assist automatically supplements with battery power if the connected devices require more power
• Up to 3600 W transfer power - full mains power if the connection allows it
• FI/LS integrated - maximum safety & easy installation


Performance

• 3000 W continuous power, 4500 W (60 s) & 6000 W (10 s) overload capacity
• High-performance charger with up to 125 A / 1500 W charging current
• Pure sine wave - safe for all 230 V consumers
• Full power even on summer vacation in the south


safety

• Integrated overload, overheating, undervoltage and short-circuit protection
• PE-N bridge in combination with Fi circuit breaker for safe operation in the vehicle
• ECE R10 certified - safe operation while driving
• Operation up to 4000 m altitude - ideal for traveling in the mountains

Control & comfort

• Bluetooth for app control (on/off, shore power limit, charging parameters)
• Additional on/off switch directly on the device for manual operation
• CI bus & CAN bus - integration into the vehicle or energy system
• Flat 10 cm height - perfect for cabinets & utility rooms

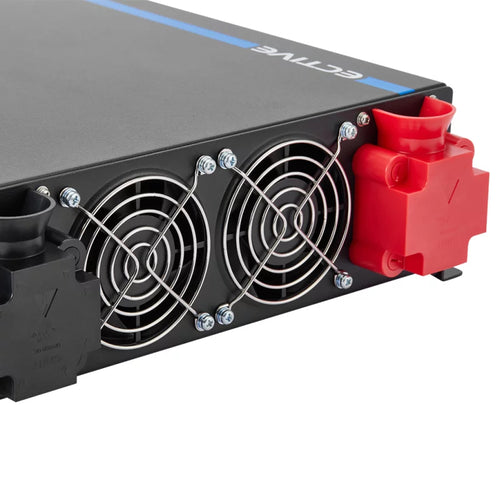

• Intelligent fan control - virtually silent at low to medium loads
• 3-year ECTIVE manufacturer's warranty

The CSI PA PRO series is the most modern inverter solution from ECTIVE and is aimed at anyone who needs a powerful, efficient and quiet power supply on the move - whether in a campervan, motorhome, service vehicle or off-grid setup.Please note that the RC PRO remote control is not compatible with the CSI PA PRO inverters.

Manufacturer's warranty: Link

Personal protection IT & TN: Link

Montageanleitung: Link
