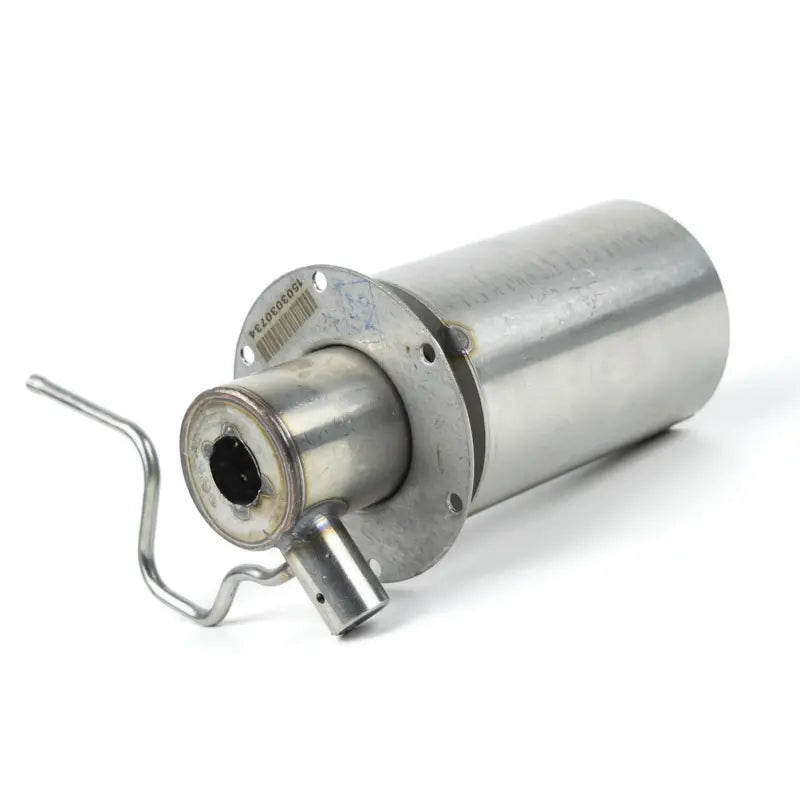

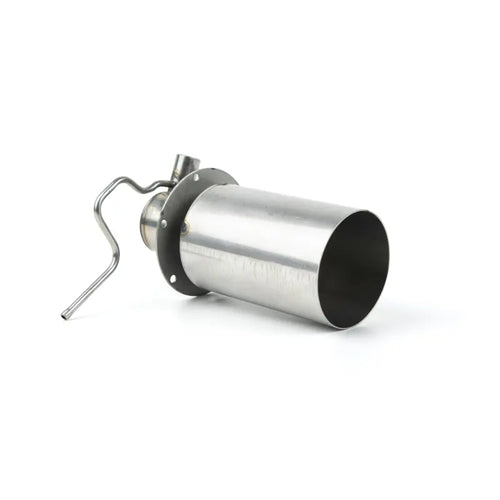

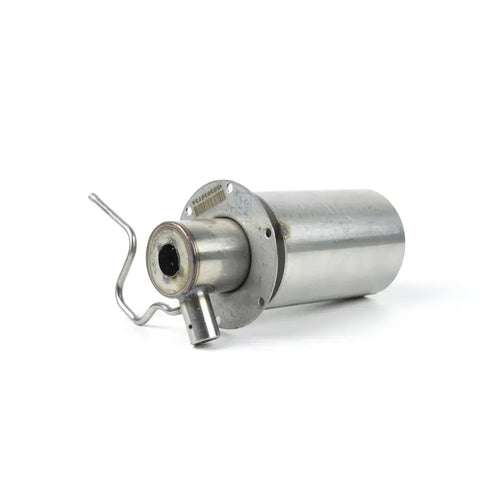

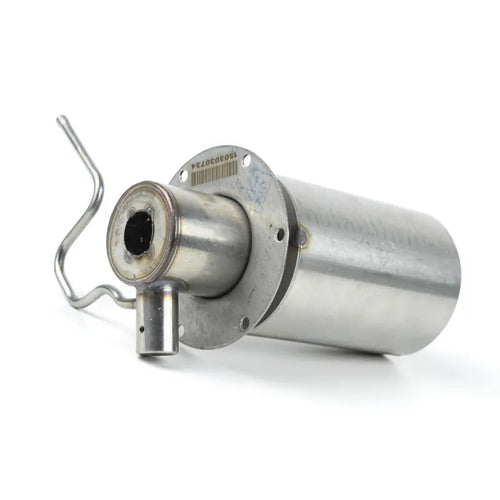

Combustion chamber for AUTOTERM Air 4D (diesel)

Description:

Combustion chamber for AUTOTERM Air 4D air heaters with diesel fuel.
The product is compatible with all versions and designs of this model and is a universal solution for servicing and regenerating the parking heater.

The set includes the glow plug evaporator screen (ASSY 869), which ensures correct fuel distribution and a stable combustion process.
Replacing the combustion chamber restores the full performance of the heater, improves combustion quality and reduces the risk of ignition faults.

Features:

• Original AUTOTERM combustion chamber
• Fully compatible with Air 4D
• Evaporator screen included (ASSY 869)
• Improves combustion efficiency
• Eliminates starting problems and smoke formation
• High resistance to heat and exhaust gases

Technical data

• Type: Combustion chamber
• Model: AUTOTERM Air 4D
• Fuel: Diesel
• Catalog number: ASSY 1503
• Evaporator insert: ASSY 869

When should the combustion chamber be replaced?

• The heater smokes or goes out
• Starting difficulties
• Ignition fault
• Drop in performance
• Running time over 2000-3000 hours
