DeltaVan adjustable roof rack bracket for Mercedes Sprinter 906 907 910 (built from 1995, suitable for L1, L2, L3 and L4 and heights H1 and H2)
- Can be mounted onairline rails, C-railsor theoriginal mounting points (fixed points)of the roof
- Bracket and screw connection made of stainlessstainless steel V2A / A2
- Sheet thickness 3mm, both angle parts are bent 90
- Bracketanthracite matt powder-coated
- Height-adjustable, height 55-85mm (0-30mm roof distance in the middle)
- Perfectly compensates for the roof curvature both lengthwise and crosswise and enables atension-free structure
- Can also be tilted sideways for special applications
- Upper part:45mm
- Bottom section:Depending on your choice of mounting accessories, we will supply you with the matching bottom section for your order
- Load capacity:see below

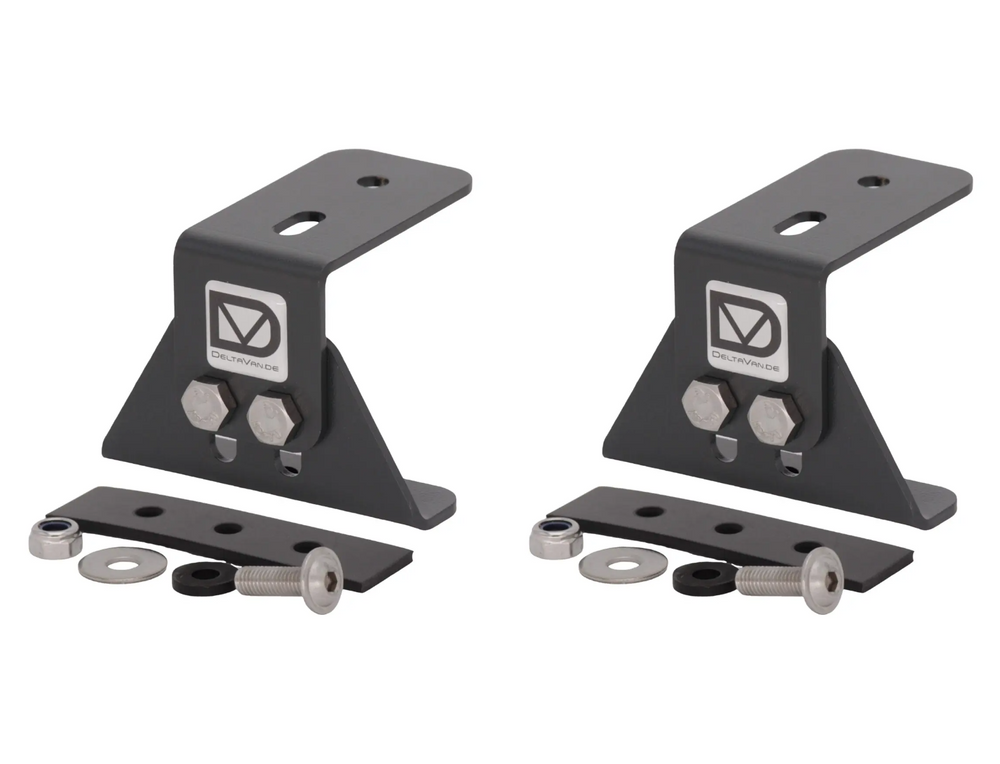

Bracket without accessories:You will receive our bracket as shown in the photos with the top section in the desired width.
Set with rubberunderlay:You will receive rubber underlays and screws to match the bracket so that you can mount the bracket directly on your vehicle without any additional adhesive or similar. see:Rubber underlay instructions

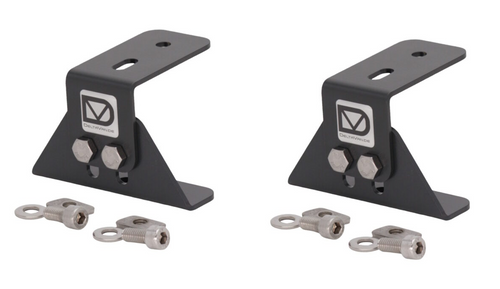

Set for C-rail:2 threaded plates 13x27mm, spring washers and cylinder screws made of stainless steel for mounting in the original C-rail. Tightening torque 5 Nm (!)
Load capacity of our brackets:
Foreword: The bracket is not the bottleneck in your planned roof rack. We manufacture the brackets from V2A stainless steel, the load capacity is theoretically well over 150 kilos even with 2 brackets. First of all, everything else comes to its knees.But:
Theinstallation guidelinesfromMercedesfor TheSprinterstates that you may drive atvehicle height H1with 6cross members / 12 brackets up to 300 kilos roof loadand at H2with 4cross members / 8 brackets up to 150 kiloswith even load distribution. Mind youdrive. This is about thedynamic loadof the vehicle body, especially during sharp bends, evasive maneuvers and emergency braking.
