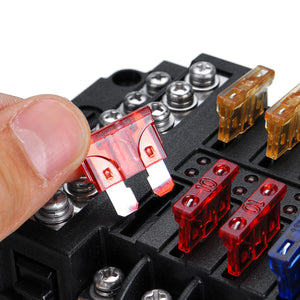

Indicator light: When the red LED lights up, it means that the fuse has been disconnected and needs to be replaced to continue operation.

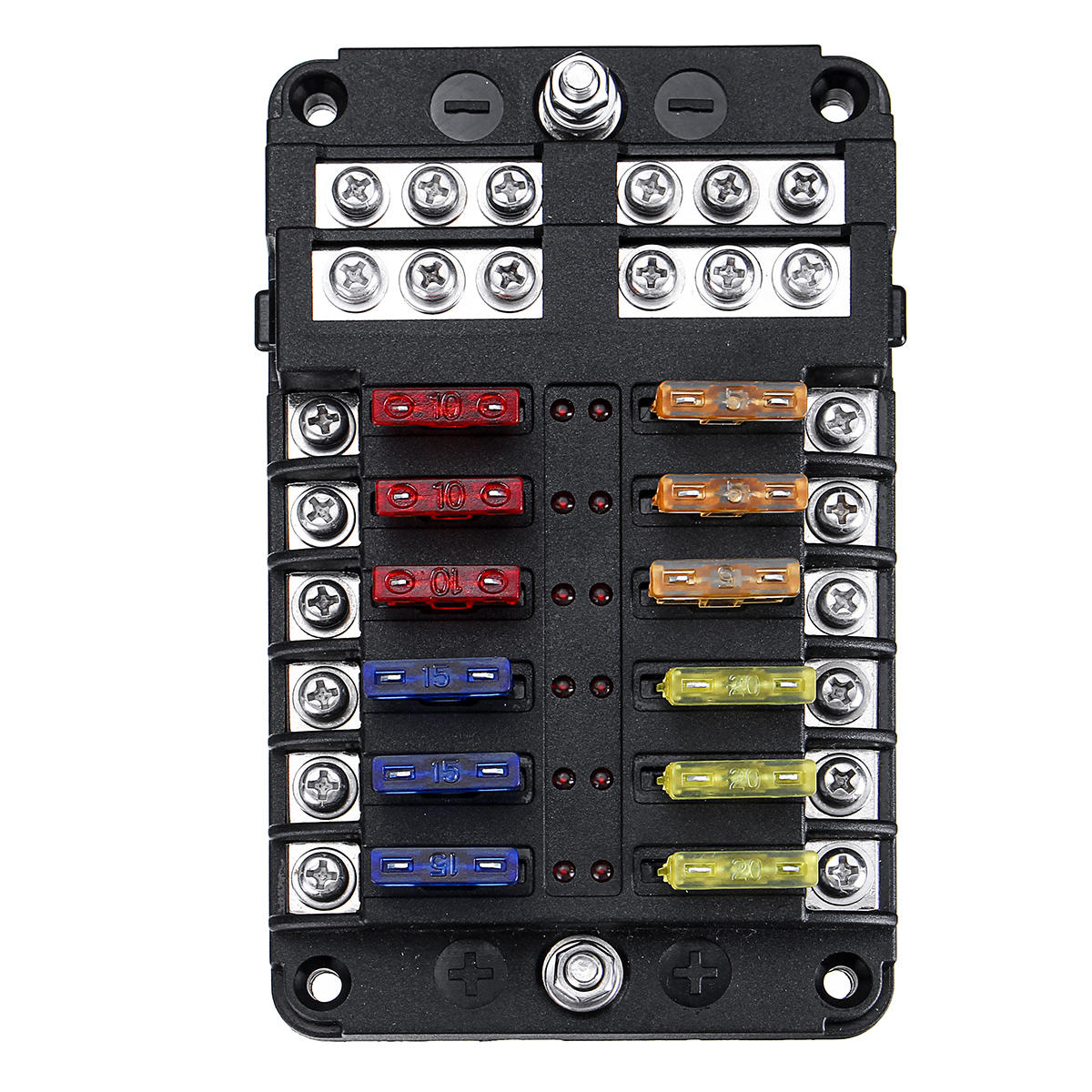

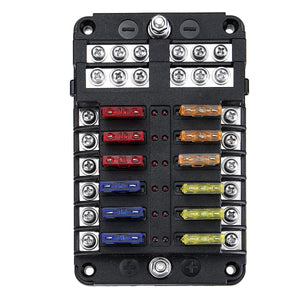

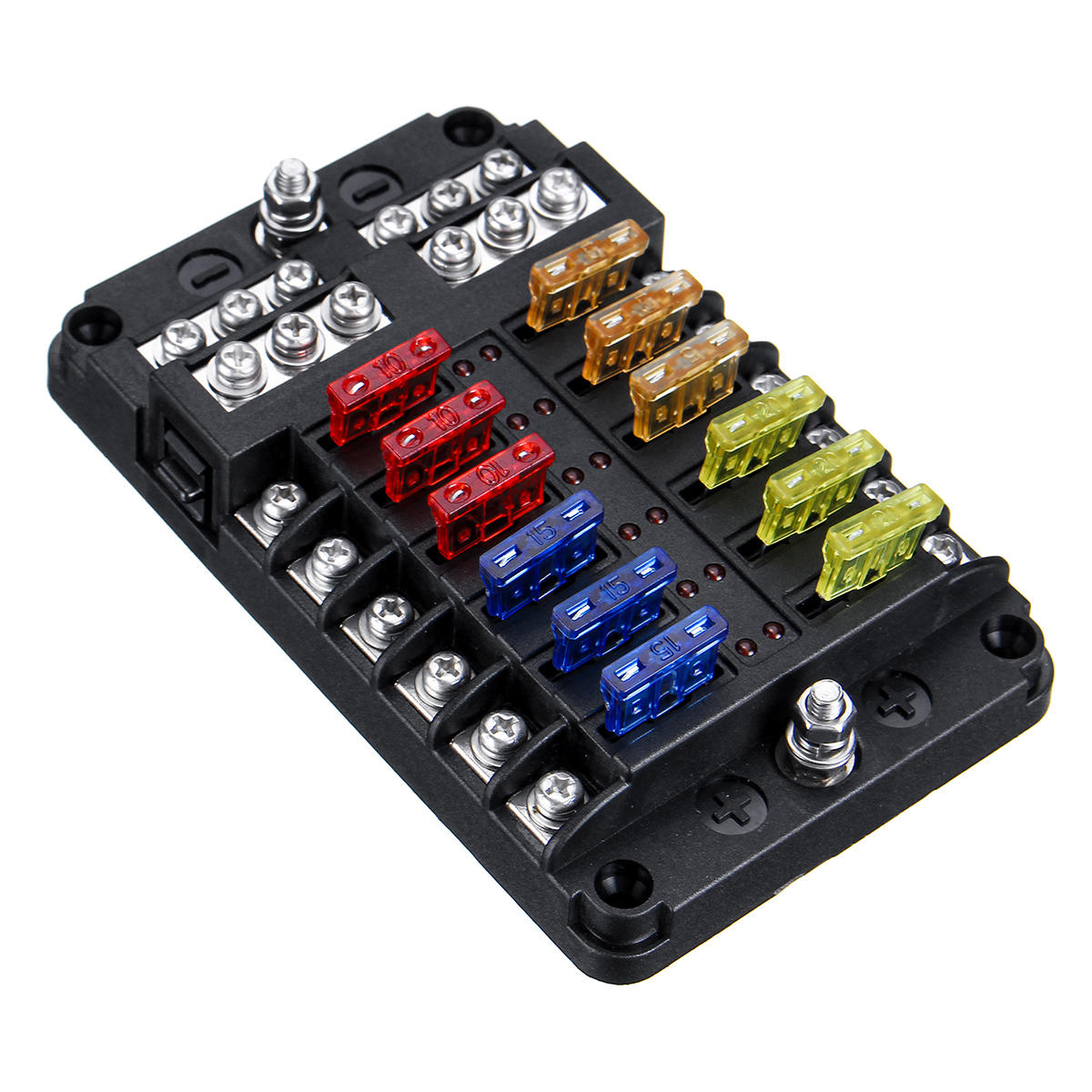

1 Input and 12 outputs
Net weight: 279g

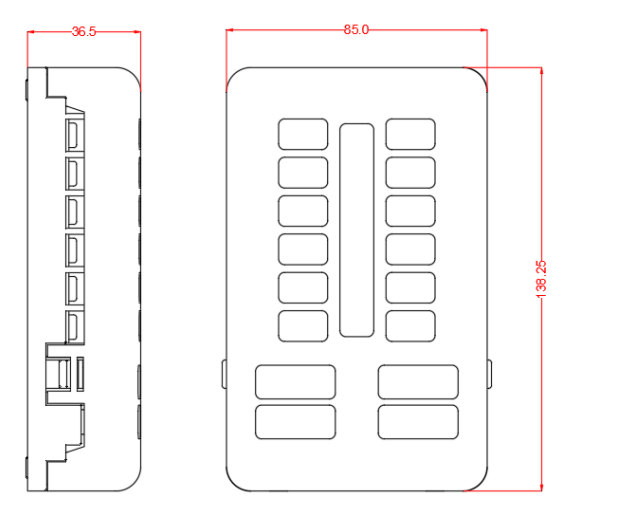

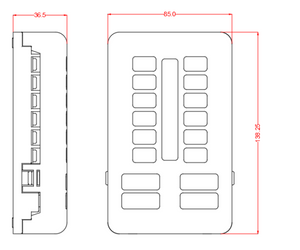

Product size: 138.25 * 85 * 36.5 mm
Nominal input voltage: 32V
Nominal input current: 100A
Maximum output current: Each circuit max. 8A (fuse protection thus per channel max. 15A)

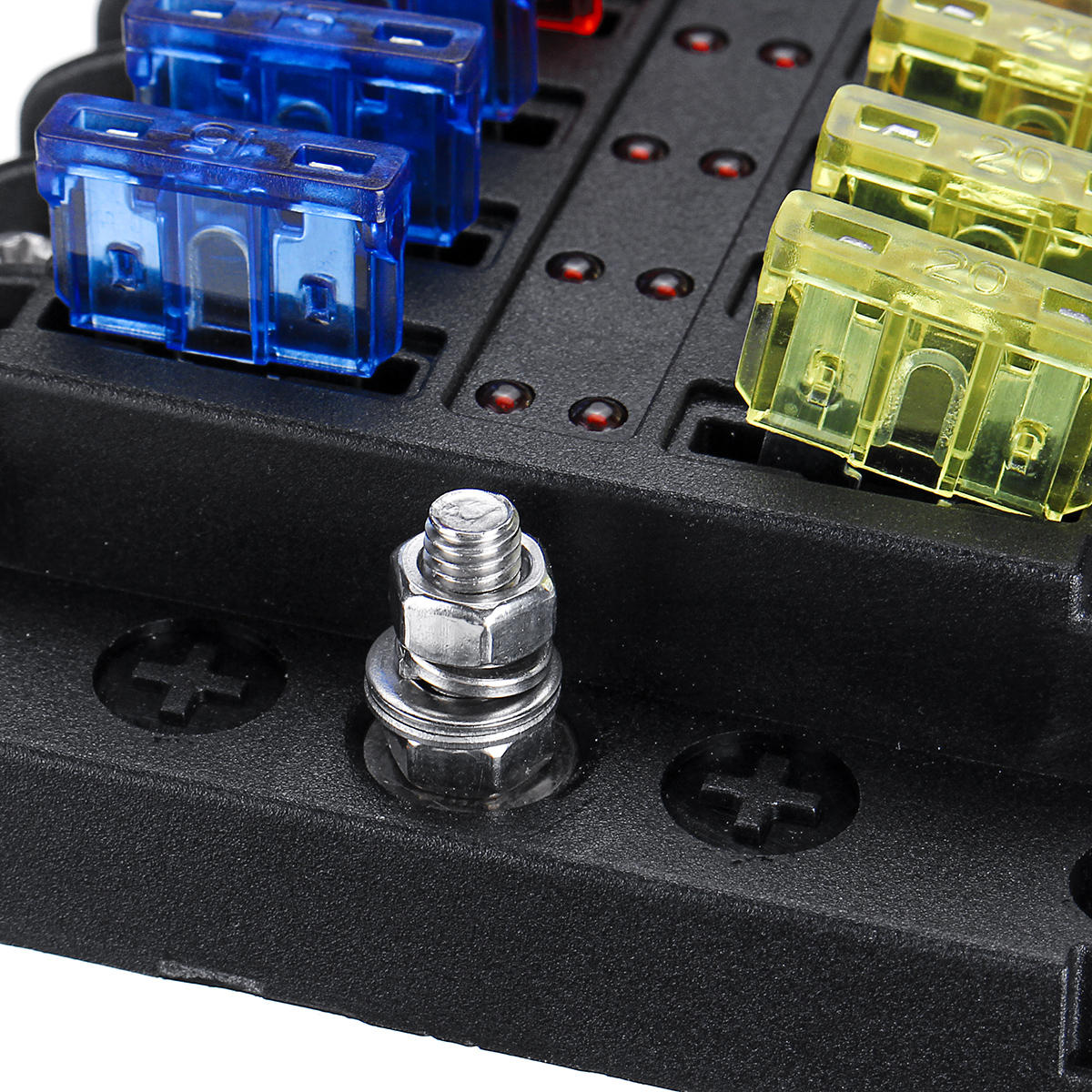

Main threaded connection: M5 threaded bolt
Single threaded connection: M4 threaded bolt
Features:
The product is made of PBT anti-fire material.
All bus and fuse terminals are made of nickel-plated copper with corrosion resistance.
All fastening elements are made of stainless steel.
1 Input and 12 outputs
Net weight: 279g
Product size: 138.25 * 85 * 36.5 mm
Nominal input voltage: 32V
Nominal input current: 100A
Maximum output current: Each circuit max. 8A (fuse protection thus per channel max. 15A)
Main threaded connection: M5 threaded bolt
Single threaded connection: M4 threaded bolt
Features:
The product is made of PBT anti-fire material.
All bus and fuse terminals are made of nickel-plated copper with corrosion resistance.
All fastening elements are made of stainless steel.

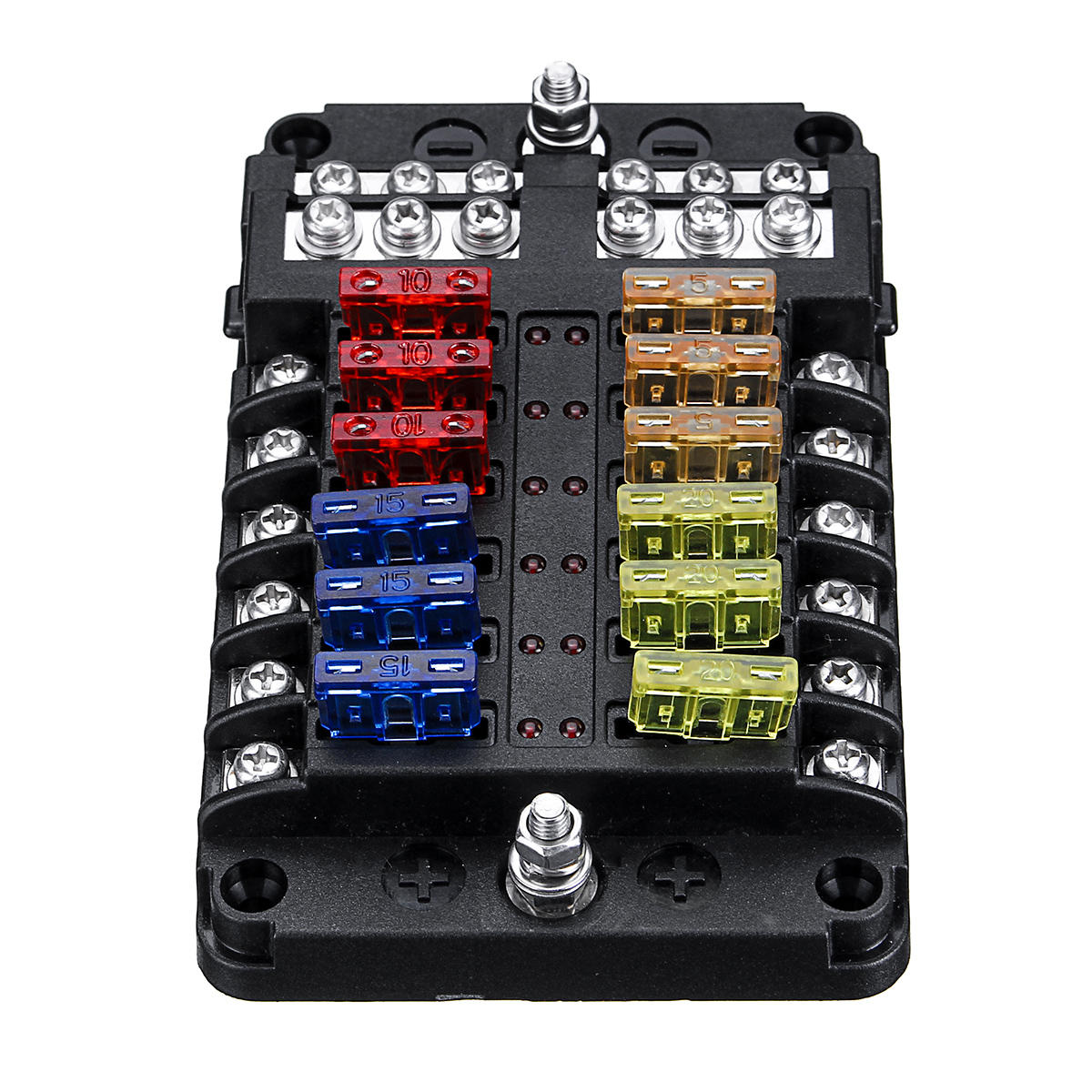

Incl. adhesive set and the fuses shown.

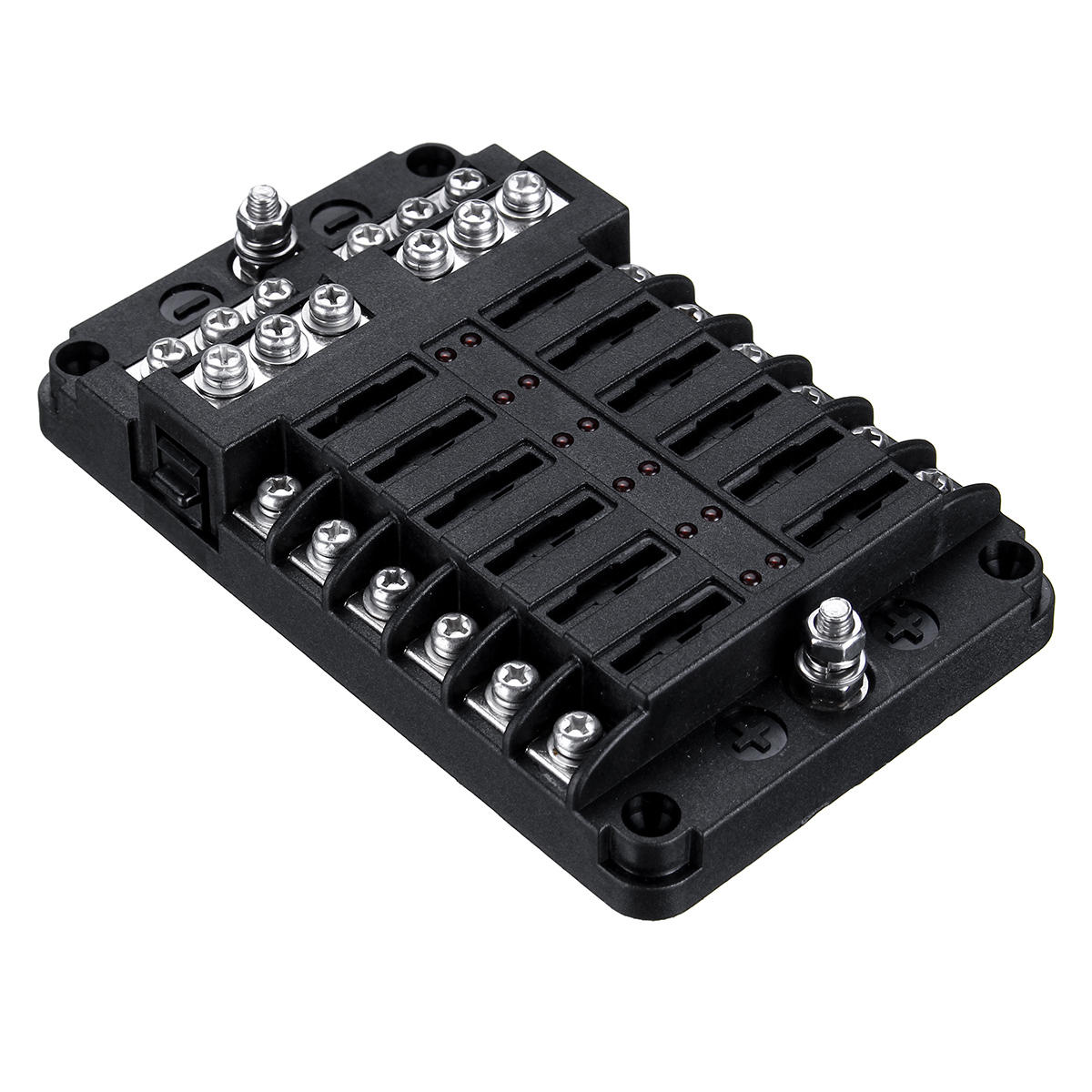

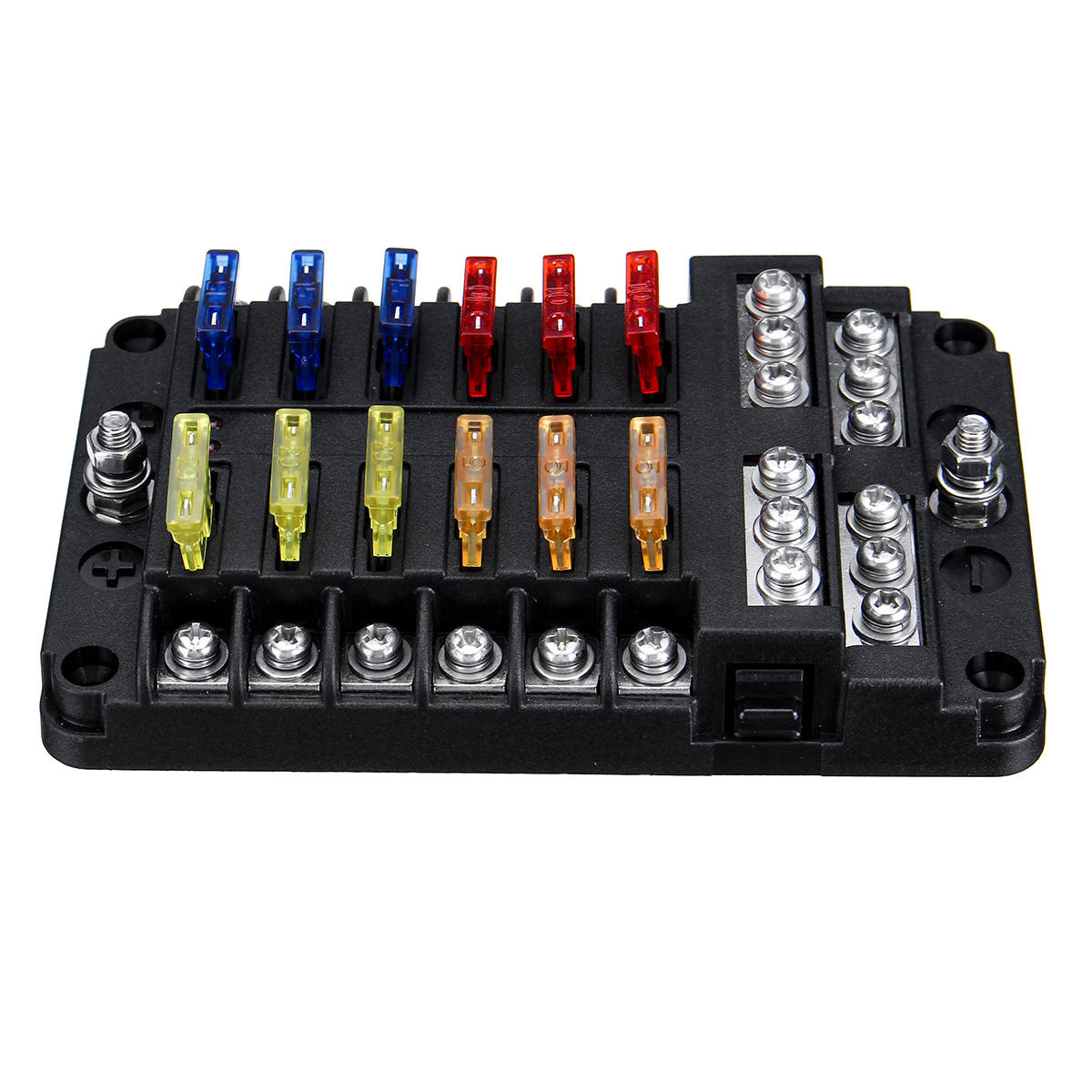

This fuse holder has a "minus bridge". This means you can wire your negative (earth) cables directly to it and have a perfect cable overview.
Example:
- A refrigerator draws up to 8A, therefore the fuse is dimensioned with factor x1.2 to 10A.
- The 12V boiler with max. 17A must not be connected to the fuse distributor.
