Important: We generally only recommend Flexi solar panels in two situations:
- If the solar panels are mounted on carrier plates as in the "T5,T6" or "Nugget" or "Transporter" solar set.
- If the vehicle has no space for solar panels with aluminum frames under any circumstances. approx. 7cm.
Advantages:
- The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 19.41%.
- Shingle string welding process, beautiful and neat,
- The finished product has thin thickness, light weight and good waterproof effect.
- Lightweight and flexible functions can be seamlessly integrated into your vehicle.
- Suitable for boats, yachts, motorhomes, camping, etc.
1130 mm * 520 mm * 3 mm
Specification:
SC SZ-180-36MFE
| Mechanical dataStandard test conditions AM=1.5, E=1000W/m2, TC=25℃ | |
| Rated power | 100W |
| Cell type | Monocrystalline |
| Module efficiency | 19,41 % |
| Maximum power current (Imp) | 4.51A |
| Maximum power voltage (Vmp) | 24.39V |
| Open circuit voltage (Voc) | 28.99V |
| Short-circuit current (ISC) | 4.79A |
| Maximum system voltage | 100V |
| Output tolerance | ±3% |

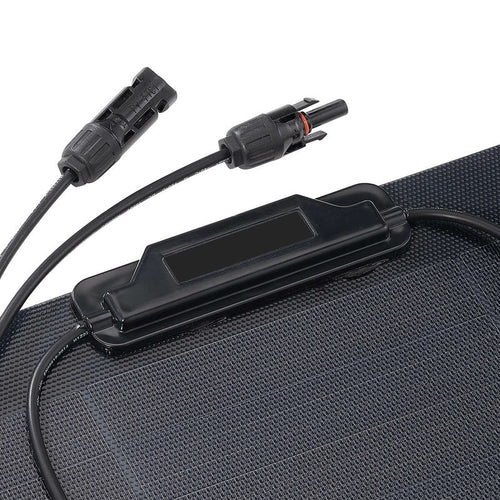

| Cable length | 700mm / 2.5mm2 |
| Connector type | MC4 / MC4 compatible |
| Module structure | ETFE / EVA / backsheet |
| Junction box rating | IP67 RATING |
| Number of diodes | Two diodes |
| Operating temperature | -20℃~+65℃ |
| Packaging | |
| Module dimensions | 1130*520*3mm |
| Module weight | 2.00kg |
| package | Single package |
