Technische Daten
| Nominal Power | 180W |
| Cell Type | Monocrystalline |
| Module Efficiency | 22.75% |
| Maximum Power Current (Imp) | 8.39A |
| Maximum Power Voltage (Vmp) | 21.45V |
| Open-circuit voltage (Voc) | 25.35V |
| Short-circuit current (ISC) | 8.90A |
| Maximum System Voltage | 1000V |
| Output Tolerance | ±3% |
| Cable | 700mm / 2.5mm2 |
| Connector Type | MC4 / MC4 Compatible |
| Module Structure | Aluminum Frame / Glass / EVA /Backsheet (White) |

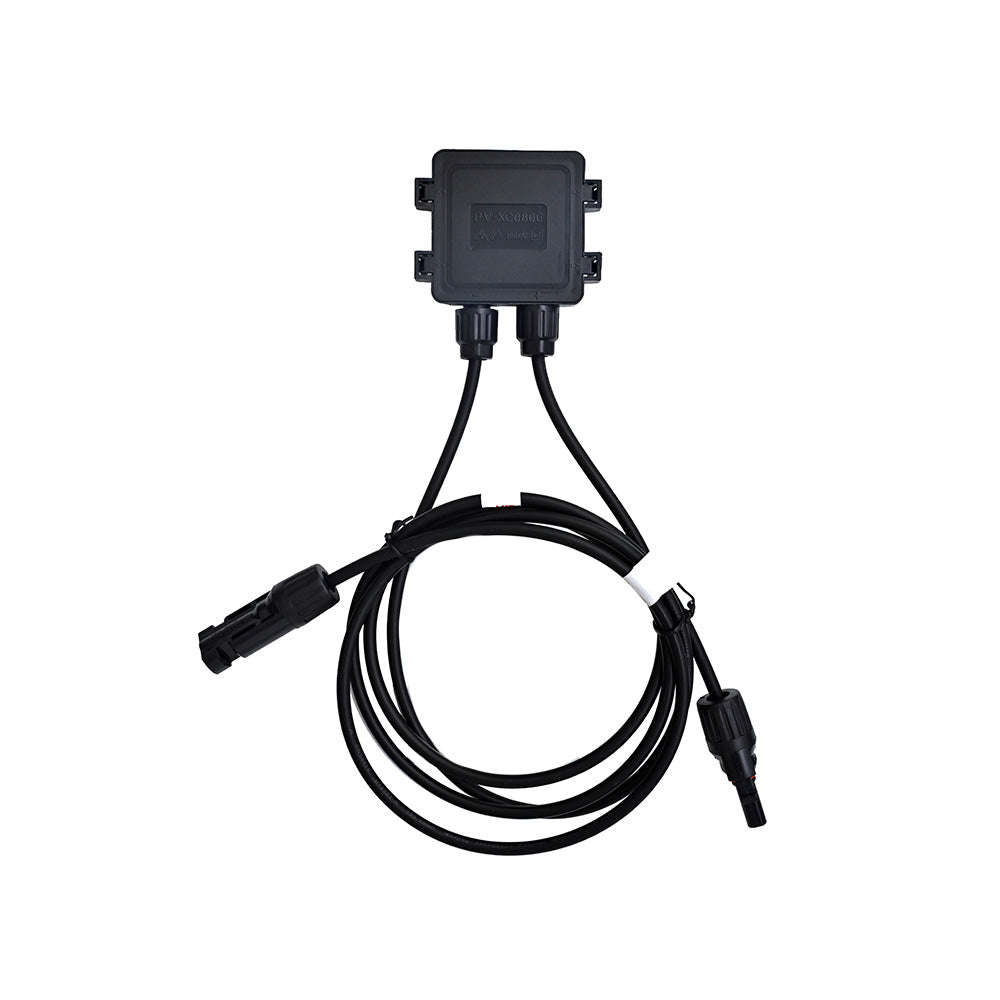

| Junction box rating | ≥IP67 |
| Number of Diodes | One |
| Working Temperature | -40℃~+80℃ |
| Packaging | |
| Module Dimensions | 1330*680*30mm |
| Module Weight | 11.83kg |
